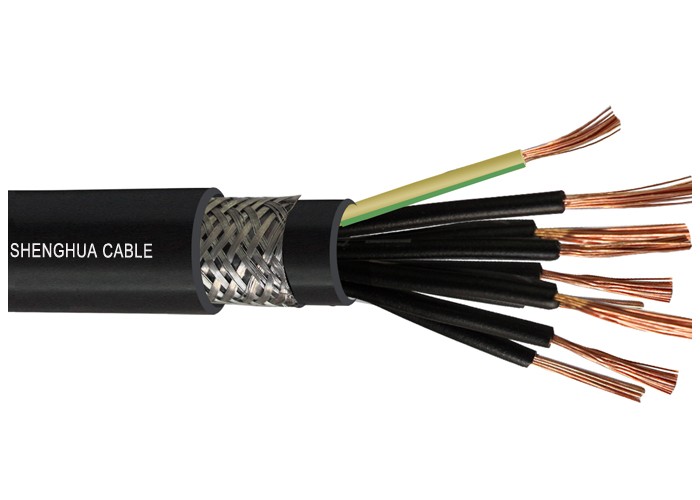

SAA Certificated Cable TCWB Screened TPU Cable

Application

This cable is designed for continuous movement in harsh indoor/outdoor environments. Features halogen-free, flame-retardant, and chemical-resistant properties for industrial use.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Fine-stranded copper conductor

Insulation

TPE/PP (Thermoplastic Elastomer / Polypropylene)

Inner Sheath

PUR (Polyurethane)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

TPU(Thermoplastic Polyurethanes)

Color

Identification as per international standards

Technical data

Voltage Rating

0.14mm2: 350V

Above 0.14mm2: 500V

Test Voltage

0.14mm2: 800V

Above 0.14mm2: 1200V

Operating Temperature:

Fixed: -40°C to +80°C

Flexed: +5°C to +50°C

Minimum Bending Radius

Fixed: 10 x overall diameter

Standards

DIN VDE 0812

Flame Retardant according to: IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
